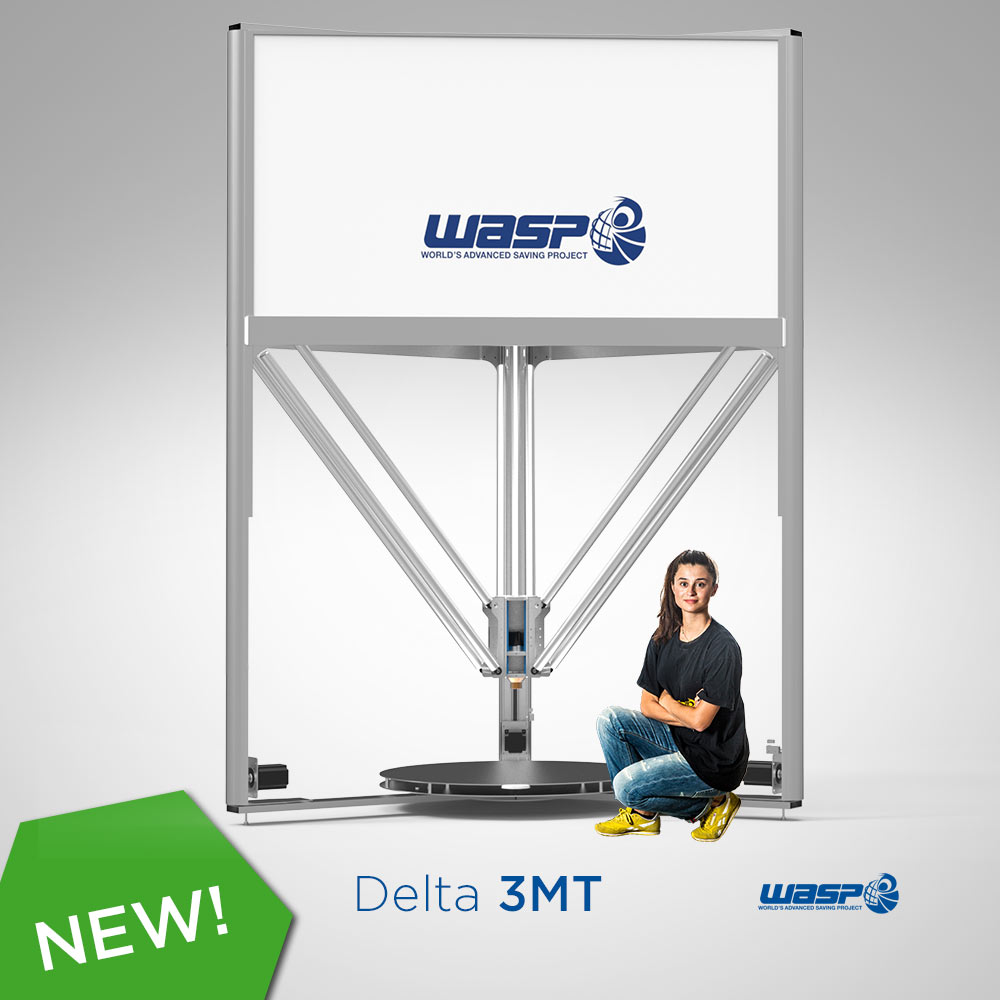

DeltaWASP 3MT
With Delta WASP 3MT dreams come true: a multi-tool to give shape to your projects as you want,
opening the doors to personal fabrication. The poweful polymeric pellet extruder can print big
and strong objects in a short time while other tools include the possibility to print ceramic mixes,
concretes and geopolymers and a CNC milling.
All these features make Delta WASP 3MT the big size best choice for rapid prototyping, small
productions, handicraft and research, defining a new standard in the world of manufacturing.
Recommended price: 28 149 EUR / 31 172 EUR depending on complectation
Frame and cover: Aluminium, steel and polycarbonate
Hot pad: Aluminium, tempered glass
Movements: industrial guides on aluminium slides,
Motors: Stepper
PHYSICAL DIMENSIONS
Dimensions: 210x235x300 cm
Machine weight: 170 kg SUPPLY
Input: 220-240V 50-60Hz
Absorbed power: 600W max (150W mid) – print + 2000W max – hot pad TEMPERATURE
Use: 10-30 C°
Warehouse: 0-30 C°
Nozzle: max 240 C°
PELLET 3D PRINTING TOOL
Technology: fabrication with fused polymeric pellets
Print volume : ø 1000mm x 1200mm
Nozzle diameter: 3 mm / interchangeable nozzle
Layer resolution: 0.5 mm < 2 mm
Axis precision X,Y 0.1 mm / axis Z 0.05mm
Speed max: 150 mm/s
Pellet diameter: 2-4 mm
Recommended pellets: PLA, PETG, Polystyrene
SOFTWARE OS: Windows XP-7-8, Mac OSX, Linux
Slicing software: Cura – Slyc3r – Simplify
Interface software: Printrun – Repetier
Host Firmware: Marlin based
File extension: .gcode INTERFACE SD Card – LCD screen – USB B
CERAMIC MIXES 3D PRINTING TOOL
Technologies: fabrication with selective deposition
Print : ø 1000mm x 1200mm
Nozzle diameter: 5 mm/interchangeable nozzle
Layer resolution: 1 mm < 2 mm
Axis precision X,Y 0.1 mm / axis Z 0.05mm
Speed max: 150 mm/s
Pressure: 4-6 Bar
Materials: Ceramic mixes (racommended paper-clay)
