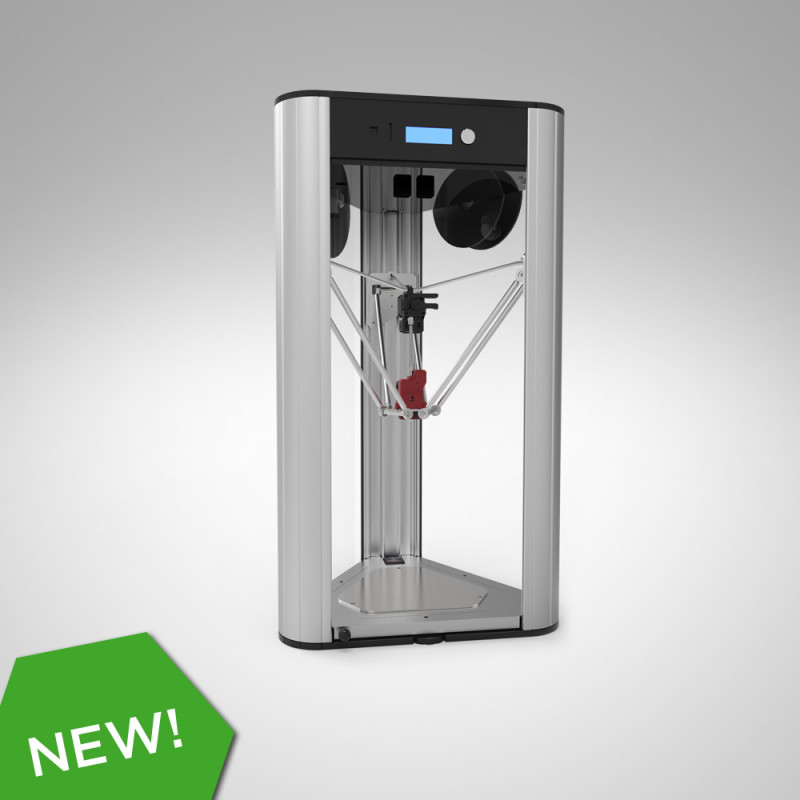

DeltaWASP 20 40 Turbo2

• Maximum printing volume: Ø200 x h400 mm;
• Close printing chamber;
• Minimum layer height: 50 micron;
• Maximum printing speed(*): 500 mm/s;
• Maximum travel speed(*): 1000 mm/s;
• Acceleration(*): 15.000 mm/s2;
• Maximum temperature of the heated bed: 120 C°;

* All speed data refers to the use of the printer with mono extruder 0.4 mm nozzle diameter.

MATERIALS

• Filaments: diameter 1.75 mm;
• Materials:
  _PLA
  _ABS
  _Flex
  _PETG
  _TPU
  _POLYPROPILENE
  _ABS+PC
  _NYLON
  _NYLON+CARBON

ESTRUDER

• DeltaWASP 20 40 Turbo2 is available in 2 versions:
  _with Spitfire Red Extruder with Spitfire LT Cartridge with 0.4 mm diameter steel nozzle (*);
  _with ZEN Dual Extruder with 2 ZEN LT Cartridges with 0.4 mm diameter steel nozzle;
• Nozzle: steel nozzle diameter 0.4 / 0.7 / 1.2 mm;

* The DeltaWASP 20 40 Turbo2 with Red Spitfire Extruder is compatible with the Clay Kit 2.0 with the LDM Extruder for the printing of ceramic and fluid fluid materials.

SOFTWARE

• Operative System: WIndows, Mac, Linux;
• Software slicing: Cura – SLic3r – Simplify 3d;
• File type: .stl, .obj, .gcode;

INTERFACE

• SD Card – LCD Screen;

PHYSICAL DIMENSIONS

• Dimensions: 49 x 44 x 87 cm;
• Machine weight: 20 kg;
• Dimensions for shipping with cardboard packaging: 59 x 51 x 102 cm, weight 24 kg;

SUPPLY

• 29V Industrial power supply;
• Input: 220/240 V 50/60 Hz;
• Power Consumption:
  _Spitfire Extruder: 60 W;
  _Powered resistance of the heated bed: 500 W;

TEMPERATURE

• Use: 20-30 C°;
• Warehouse: 0-30 C°;
• Nozzle: max 350 C°;
• Heated platform: max 120 C°

MECHANICS

• Frame and cover: Aluminium, polycarbonate, plexyglass;
• Print bed: Stainless steel;
• Movements: nylon wheels on aluminium slides;

SUSPENDED BOWDEN
It Makes possible to download the inertia on the hanging rubber-bands, improving like that the printing speed and quality.

FREE ZED SYSTEM
It allows to print a file starting from a precise height of the model to be printed, height previously selected.

RESURRECTION SYSTEM
It is a system which allow users to save their print job and resume it in the case of power failure.

Industry 4.0:
CE Certification for Industrial 4.0 Subsidies
